lunavpvp™ Shelf Pin Drilling Jig Kit, 1/4-Inch Drill Guide with 1-1/4-Inch Hole Spacing for Cabinets and Bookcases
lunavpvp™ · WOODWORKING COLLECTION Shelf Pin Drilling Jig Consistent rows for adjustable shelving. Drilling Jigs · Workshop Series 01 / THE DETAILS Designed around the work. Create rows of shelf-pin holes along cabinet and bookcase sides. Six guide positions establish one section, and an indexing pin registers the jig to an existing hole to extend...
Product questions? service@lunavpvp.com
lunavpvp™
Drilling Jigs
LUNA-WW-013
Available to order
A closer look.
Details worth knowing.
lunavpvp™ · WOODWORKING COLLECTION
Shelf Pin Drilling Jig
Consistent rows for adjustable shelving.
01 / THE DETAILS
Designed around the work.

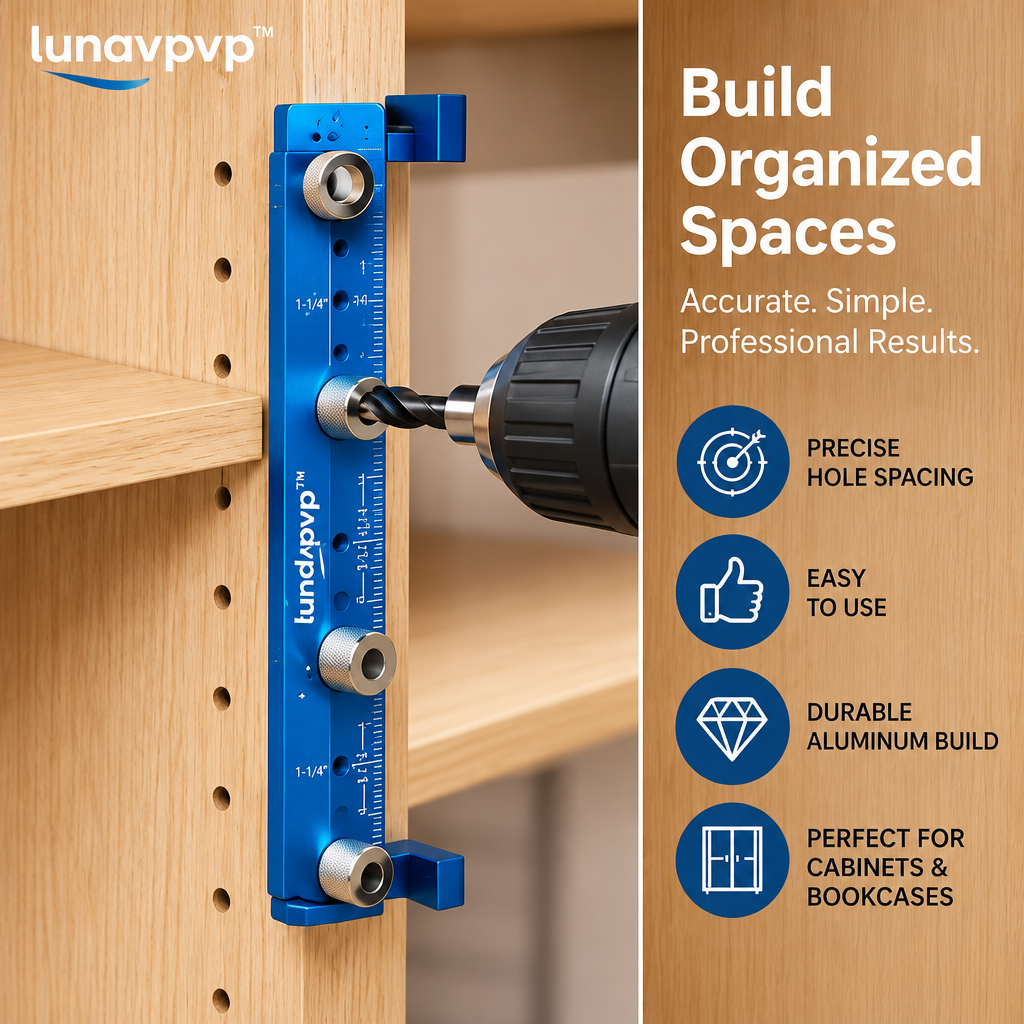

Create rows of shelf-pin holes along cabinet and bookcase sides. Six guide positions establish one section, and an indexing pin registers the jig to an existing hole to extend the pattern. A reversible fence provides two edge setbacks.
Steel bushings guide the supplied bit, while a stop collar controls drilling depth. The compact blue body includes centerline references for positioning. This jig uses 1-1/4-inch spacing, equivalent to 31.75 mm; it is not a 32 mm-system jig.

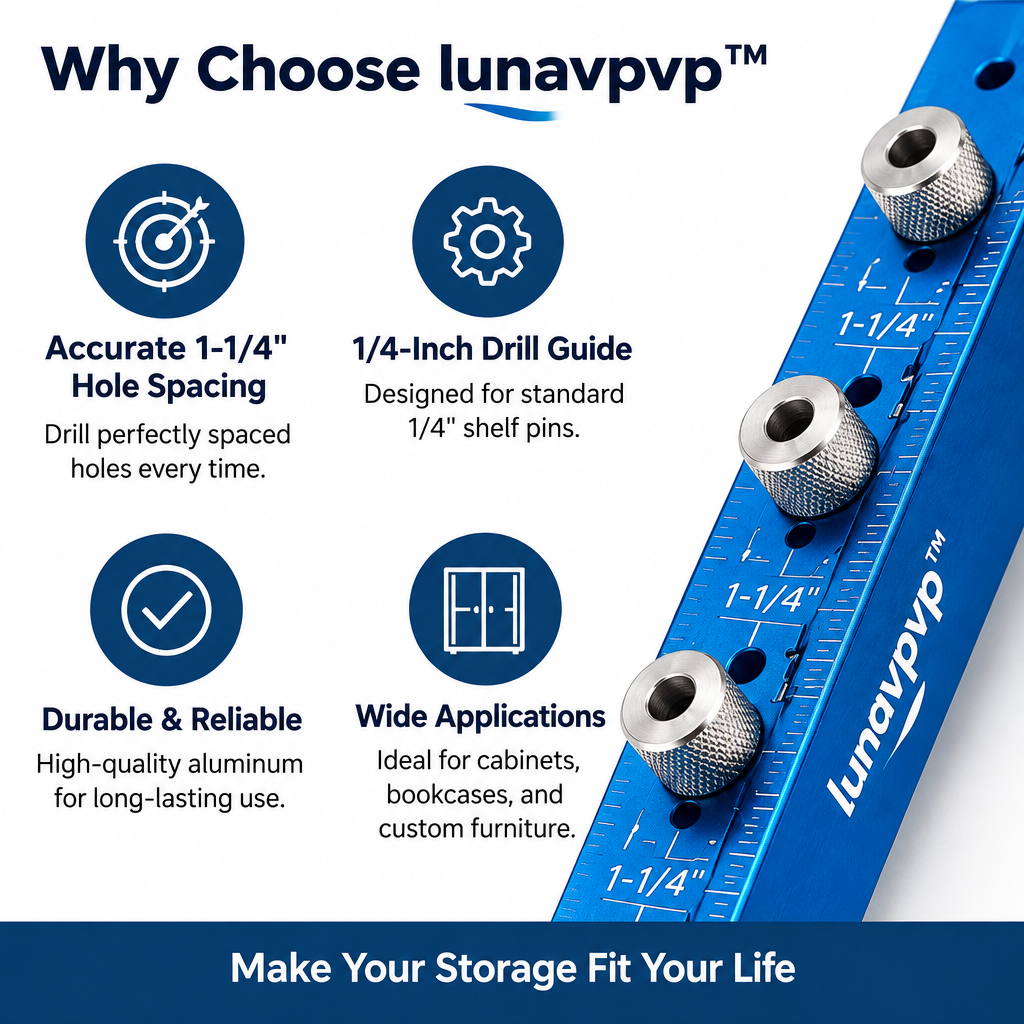

02 / FEATURES
Built into every detail.
Six positions establish a repeated hole pattern
1-1/4-inch on-center spacing defines shelf adjustments
Indexing pin extends the pattern
Reversible fence provides two setbacks
Steel bushings guide each drilling position
Stop collar controls the selected hole depth

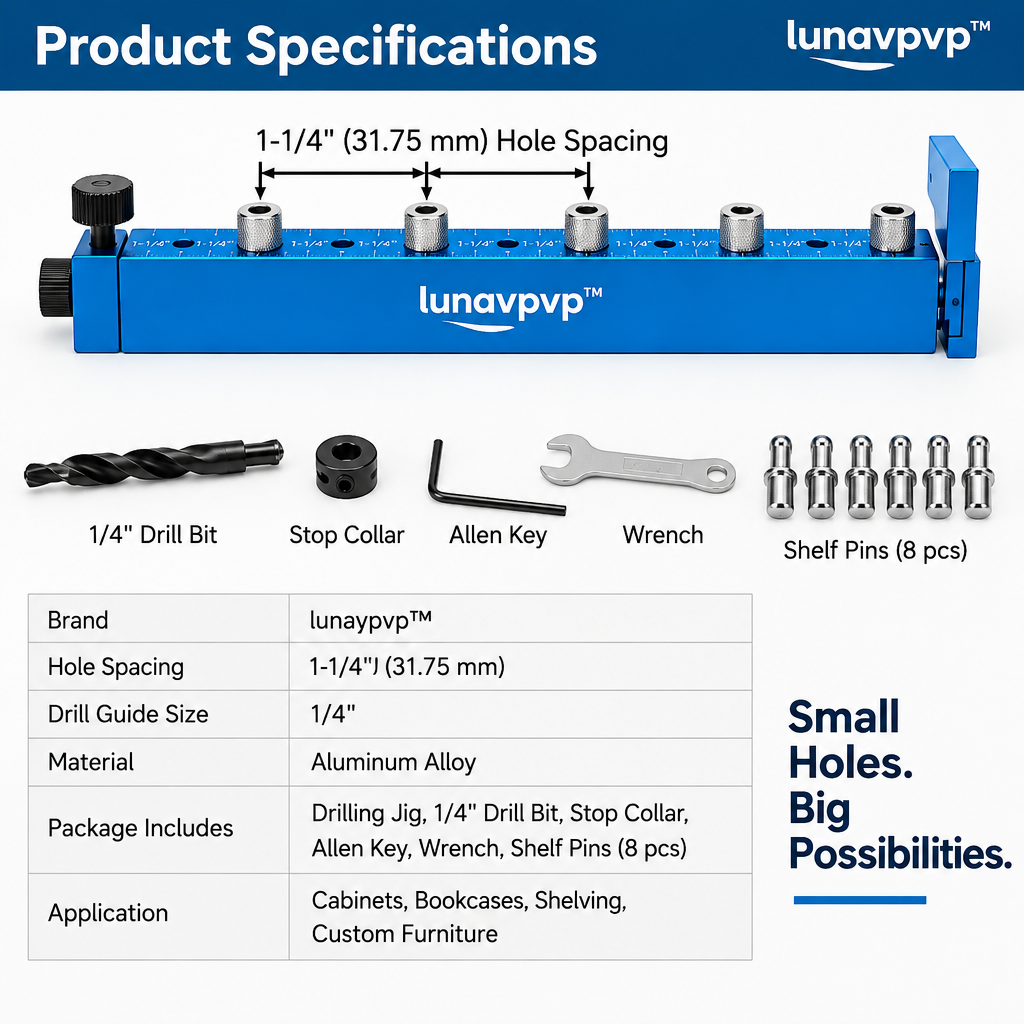

03 / SPECIFICATIONS
Know your setup.
| Hole diameter | 1/4 in. |
|---|---|
| Hole spacing | 1-1/4 in. on center (31.75 mm) |
| Fence setbacks | 1-1/2 and 2-1/2 in. |
| Guide positions | Six |

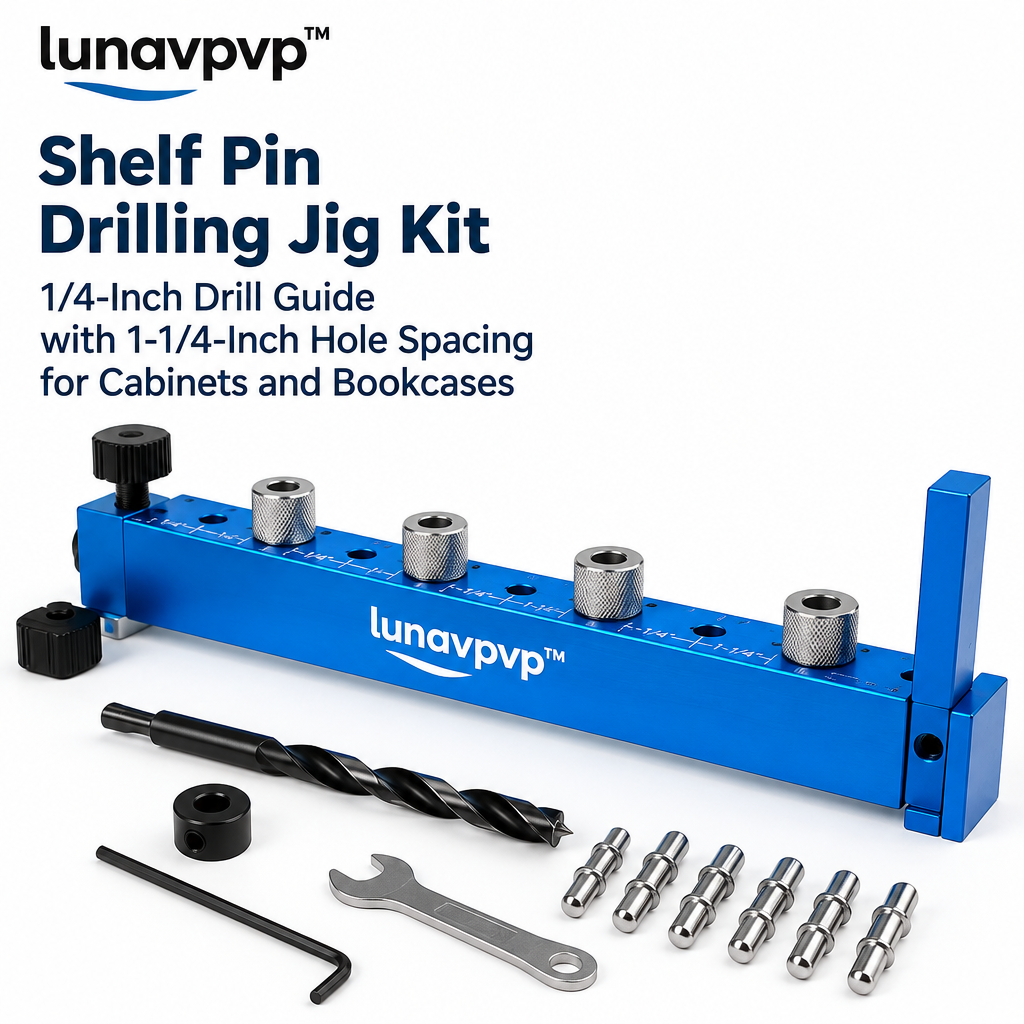

📦 Inside the box
Jig, fence, bit, stop collar, indexing pin, hex key, and pouch. Drill and workholding clamp sold separately.
